LCD/LED Video Wall Processor
Key Features
Overview

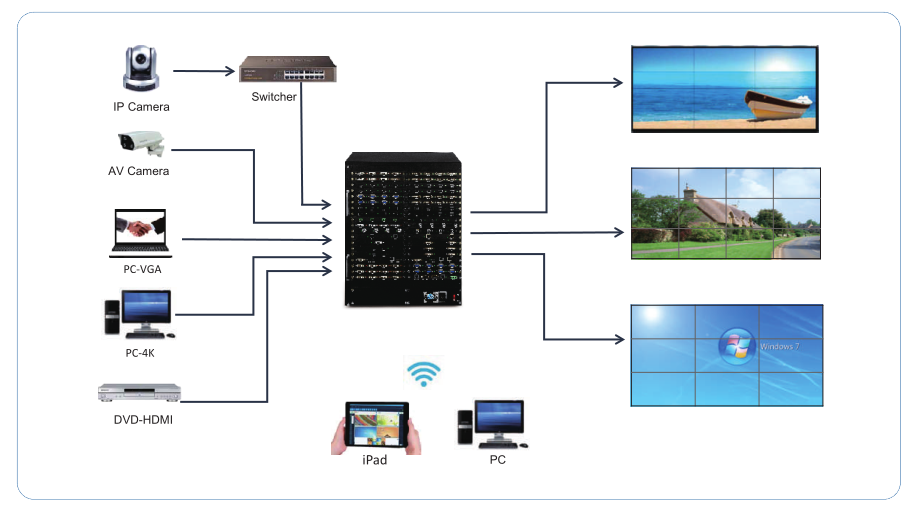

VW Series is a multi-windows video wall processor for LCD and LED video wall. FPGA hardware architecture with modular design, real-time display and control different types of high resolution video signal and IP stream on to the video wall. The device can accept 4K Signal which offer impeccable image quality across multiple screens. Single processor can control 8 groups different resolution video walls, support multi-user simultaneous operation ( Windows/ IOS). Support audio DE-embed , audio and video synchronous switch. Network port or serial port control, suitable for all kinds of video wall application environment.
Feature
▲Pure Hardware FPGA Architecture with Modular Design
▲Hot Swap Input/Output Card/Fan/Power Supply

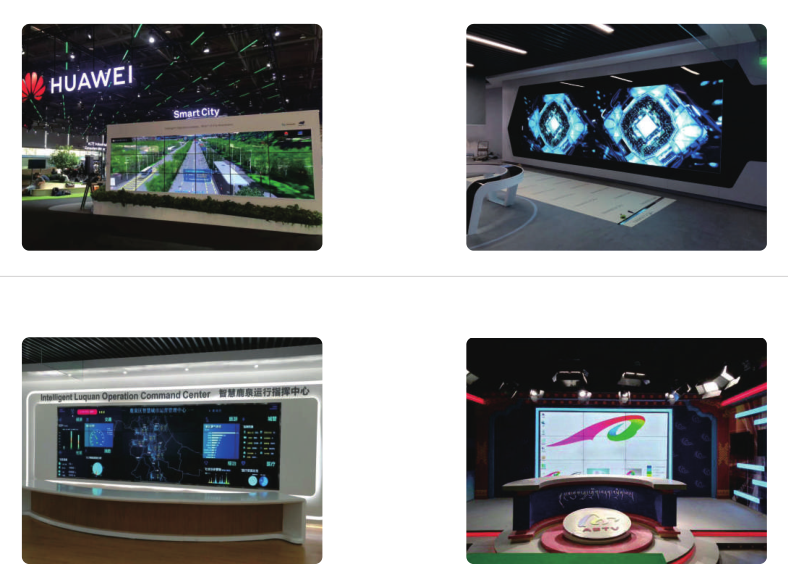

▲Support both LED & LCD Video Wall
▲Intermix Slots Up to 320 Inputs & 320 Outputs
▲Various Signal Format HDMI, DVI, VGA, SDI, HDBaseT, Fiber Optical, 4K, IP Stream, YPbPr, CVBS
▲Redundant Power Supply
▲4K UHD Resolution Signal Input Support, 3840*2160@30Hz
▲IP Stream Support H.265, downward compatible H.264
▲Rolling Subtitle, real time edit subtitle content size, colour&speed
▲Character Overlay on output channel, labeling on open window
▲Multiple Video Wall Groups Management, up to 8 groups
▲Browser & Website Image Signal Support

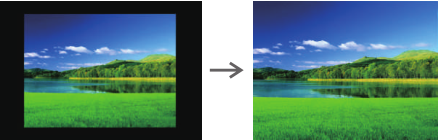

▲Signal Source Cropping & Black Edge Cutting
▲PIP, Overlay, Roaming, Zoom in/Out, Stretch
▲Input Signals Preview
▲Video Wall Review, Synchronous Display on Seperate Monitor
▲Presets Layout
▲Multi-user Operation
▲IPad Control
▲Audio Card, audio DE-embed，audio and video synchronous switch
▲Central Control Card, IR/IO/RS232
▲USB Storage Card Signal Source Storage, Recording & Replay
▲Wireless Presentation Card Signals Wireless Transmission
Technical
Specifications
Model Description
FLVW IN 4DVI-I
FLVW IN 4HDMI
FLVW IN 4DVI
FLVW IN 4VGA
FLVW IN 4SDI
FLVW IN 2HDBaseT
FLVW IN 4RJ45
FLVW IN 4Fiber-S
FLVW IN 4Fiber-M
FLVW IN IP Decode
FLVW IN 1HDMI1.4
FLVW IN 1Dual-Link DVI
FLVW IN 1DP
FLVW OUT 4HDMI
FLVW OUT 2HDMI
FLVW OUT 4DVI
FLVW OUT 2DVI
FLVW OUT 2HDBaseT
FLVW Preview
FLVW Rolling Subtitle
FLVW USB Storage
Wireless Presentation
FLVW Audio
Central Control
Redundant Power Supply
DVI-I Input Card Four Channel AV/YUV/VGA/HDMI Signal Input (Adaptor)
HDMI Input Card Four Channel HDMI1.3 Signal Input
DVI Input Card 4 Channel DVI Signal Input
VGA Input Card 4 Channel VGA Signal Input
SDI Input Card 4 Channel 3G SDI Signal Input
HDBaseT Input Card 2 Channel Twisted-Pair Signal Input
RJ45 Input Card 4 Channel RJ45 Signal Input
Fiber Optical Input Card 4 Channel Single-Mode Optical Signal Input
Fiber Optical Input Card 4 Channel Multi-Mode Optical Signal Input
IP Decode Input Card Decode H.265 Signal to 4 Channel 1920*1080@60Hz
HDMI1.4 Input Card 1 Channel HDMI1.4 Input. Resolution 3840*2160@30Hz
Dual-Linked DVI 1 Channel Dual-Link DVI Input. Resolution 3840*2160@30Hz
DP Input Card 1 Channel DisplayPort Input. Resolution 3840*2160@30Hz
HDMI Output Card 4 Channel HDMI Signal Output, 2 Windows per Output Channel
HDMI Output Card 2 Channel HDMI Signal Output, 4 Windows per Output Channel
DVI Output Card 4 Channel DVI Signal Output， 2 Windows per Output Channel
DVI Output Card 2 Channel DVI Signal Output， 4 Windows per Output Channel
HDBaseT Output Card 2 Channel Twisted-Pair Signal Output
Preview Card Real-Time Input Signal Preview on Software with 8 Channels per Card
Rolling Subtitle Card Real-Time Edit Subtitle Content, Size, Colour, Speed
USB Storage Card One Channel Signal Recording and Replay On Separate Screen
Wireless Presentation Card 1/2/4 Channel Signals Wireless Transmission
Audio Card 4 Channel Stereo Audio Input/Output, 3.8mm Interface
Central Control Card 8 channels of RS232/IR/IO/Relay
AC 100-240 V
Model
Cards Description
Item
Commodity
Chassis Size
Input Channel
Input Signal Format
Output Channel
Output Signal Format
Resolution
Audio
HDCP
Power Supply
Operation System
Warranty
Operating Temperature
Storage Temperature
Relative Humidity
Control
Rack Mount
Description
VW Multi-Inputs Video Wall Processor
2， 4， 9， 12， 22
UP to 36 Input Slots
HDMI, DVI, VGA, SDI，AV, YUC, HDBaseT, RJ45, Fiber-Optical,
4K HDMI1.4, 4K Dual-Linked DVI, IP Stream H.265
UP to 36 Output Slots
HDMI, DVI, HDBaseT
UP to 4K ( 3840*2160 @ 30Hz)
Support
Support
AC 100-240 V
Windows 7, 8, 10
3 Years
0-45 ℃
-10-60 ℃
5% to 90% non-condensing
TCP/IP, PC Software, Ipad Control
Yes

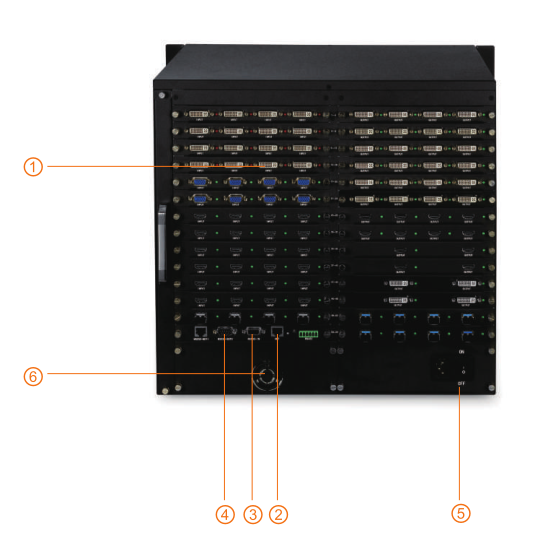

Panel Drawing
① Input / Output Card
② LAN : Connect to Network
③ RS232 IN : Connect to PC
④ RS232 Out
⑤ Fan
⑥ Power Supply
