Fiber KVM
Key Features
Overview

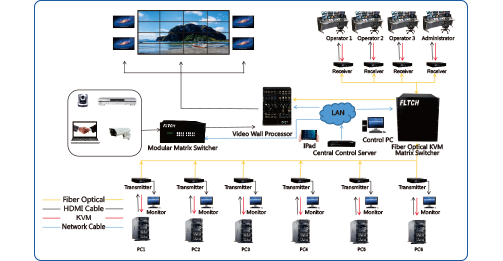

F Serious Fiber Optical KVM solution extend and switch audio, video and control signals (Keyboard & Mouse)through fiber optical. None-compressed with zero latency and delay, real-time control and manage of remote systems, which enables to locate critical computing hardware in a secure and temperature controlled environment, isolated from the user work station, with minimal lag across a distance of 10km.
OSD Hot Key Menu and Visualized Central Control System enables users interact with as much computerusing a single mouse and keyboard. The operator can simply select the computer they need to control providing the experience of a single desktop, saving both time and desk space.
Feature
▲ Pure Hardware Architecture
▲ Modular Design, extendable and flexible
▲ OSD Hot Key, Visualized control through drag and drop
▲ Instant Seamless Switching, zero latency and delay
▲ Lossless Transmission， Transmission Distance 10K
▲ Video image share between operators or to the video wall
▲ Multi-user Operation, authority control
▲ Each operator view multiple signal sources,each console contains multiple monitors, enabling usersto access to multiple signal source computers over multiple consoles
▲ One Set Keyboard & Mouse control multiple monitors of each console
▲ No limitation on the quantity of computer resources
▲ Audio Capability
▲ High Stability Redundant Power Supply
▲ Multiple Control RS232/Network Port Control
Fiber Optical KVM Transceiver
▲ Video Format HDMI ， DVI
▲ Video Resolution 1920*1080@60Hz
▲ Long Distance Transmission，Transmission Distance 10KM
▲ Delay-free extension of video, audio and KVM signals guarantee image quality
▲ Rock Mounting
▲ Optical and Network Backup
Technical
Specifications
Item Description
Commodity Fiber Optical KVM Solution
Chassis Size 2, 4, 9, 12, 22
KVM Matrix Switcher Signal Format Fiber Optical
KVM Matrix Switcher Channel UP to 72 Slots
DVI -D Input （HDMI/ DVI-I / VGA Model Available ）
Local Loop Output (HDMI)
Fiber Optical Output
KVM Transmitter （TX） Analog Audio / Digital Audio (Embedded HDMI)
Transmission Single / Multiple Model Fiber
USB Type B
Fiber Optical Input
HDMI Output ( DVI - D Model Available）
KVM Receiver （RX） Analog Audio / Digital Audio (Embedded HDMI)
Transmission Single/Multiple Model Fiber
2 USB Type A
Resolution Up to 1920*1080 @60Hz
Audio Support
Power Supply AC 100-240V
Warranty 3 Years
Operating Temperature 0-45 ℃
Storage Temperature -10-60 ℃
Relative Humidity 5% to 90% non-condensing
Control RS232 / ENTERNET PORT
Rack Mount Yes
Model
Model Chassis Slots
Fiber KVM C206 Matrix Switcher 2U 6 Slots
Fiber KVM C409 Matrix Switcher 4U 9 Slots
Fiber KVM C927 Matrix Switcher 9U 27 Slots
Fiber KVM C1236 Matrix Switcher 12U 36 Slots
Fiber KVM C2272 Matrix Switcher 22U 72 Slots
Fiber Optical Card Four Channel Fiber Optical
Redundant Power Supply AC 100-240 V
Cards Description
DVI - D Input （HDMI/ DVI - I / VGA Model Available ）
Local Loop Output (HDMI)
Fiber Optical KVM Transmitter Fiber Optical Output
Analog Audio / Digital Audio (Embedded HDMI)
Transmission Single / Multiple Model Fiber
USB Type B
Fiber Optical Input
HDMI Output ( DVI - D Model Available）
Fiber Optical KVM Transmitter Analog Audio / Digital Audio (Embedded HDMI)
Transmission Single/Multiple Model Fiber
2 USB Type A
Panel Drawing
① DVI IN Video Input Port
② LOOP OUT HDMI Loop Out For Local Monitor
③ FIBER OUTPUT Fiber Optical Output Port
④ NET PORT Transport Video/Audio Stream
⑤ USB PORT For KVM Control
⑥ AUDIO IN / OUT Audio Port
⑦ POWER
① HDMI OUT Video Output Port
② FIBER INPUT Fiber Optical Input Port
③ USB PORT For KVM Control
④ NET PORT Reception Video/Audio Stream
⑤ POWER
Software &
Download

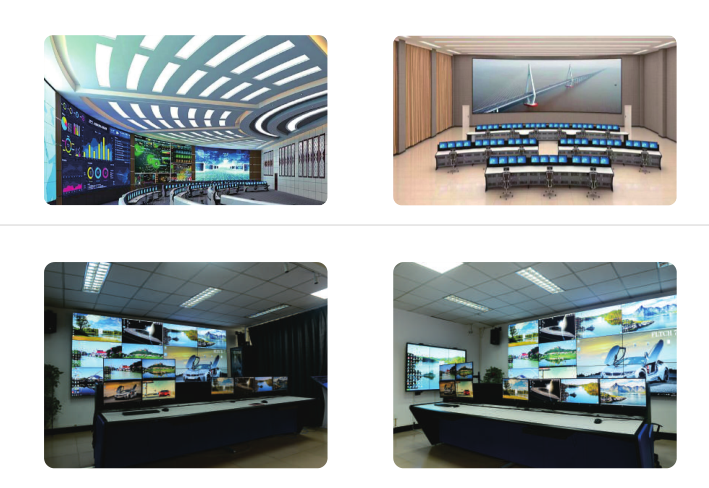

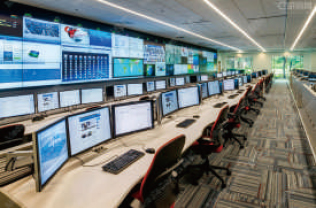

Case Study
