Visualized Central System is a specifically modular Programming appliance designed to control AV and building technology with immense power and numerous integrated control ports , geared to meet the high-end control and automation requirements of the most sophisticated and complex project situation. Provides secure control for AV system, HVAC, lights, curtain, security, power management, and many similar specialized applications requiring economical control.

Feature

▲ Modular Programming Network Architecture
▲ On-board 256MB RAM and 1GB Flash Memory
▲ Visualized Touch Screen Function
▲ Seamless Integrate into the system ,control all the hardware devices
▲ Integrate all the functionality into a single interface
▲ PC, iPad, and Android control app support
▲ Multi-user Operation, authority management
▲ High-speed, real-time seamlessly run multiple programs simultaneously

Technical

Specifications

Item                                                                            Description



Commodity                                                                Central Control Systems



Memory Card                                                            On-board 256MB RAM and 1GB Flash Memory
Power Supply                                                            AC 100-240 V
Warranty                                                                   3 Years
Operating Temperature                                            0-45 ℃
Storage Temperature                                               -10-60 ℃
Relative Humidity                                                     5% to 90% non-condensing

Control                                                                      RS232 / ENTERNET PORT

Rack Mount                                                               Yes



Model

                                                                                 （8）3 pin phoenix Terminal Blocks

COM Ports                                                                 RS-232, 422, 485 Ports
                                                                                   Pin Definition 2=GNF, 3=RX
                                                                                   1200-57600 baud



                                                                                   （8）3 pin phoenix Terminal Blocks
                                                                                    IR Transmit 1 way Serial Port
IR                                                                                Pin Definition 1=negative electrode, 3=positive electrode

                                                                                    Each IR terminal can store 16 sets of NEC codes or 8 sets of other codes

                                                                                    1200-57600 baud



                                                                                   （8）3 pin phoenix Terminal Blocks
                                                                                    8  I/O Port for contact closure with each input being capable of voltage sensing,
I/O                                                                               circuit protection and power down memory.
                                                                                    Pin Definition 1= TX, 2= GND, 3=RX
                                                                                    Voltage 0-24V

Panel Drawing

① IR Card 8 Channel IR Port
② IO Card 8 Channel IO Port
③ RS232 Card 8 Channel RS232 Port
④ LAN : Connect to Network
⑤ RS232 IN : Connect to PC
⑥ RS232 Out
⑦ Power

Case Study

Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table

Overview

　　Visualized Central System is a specifically modular Programming appliance designed to control AV and building technology with immense power and numerous integrated control ports , geared to meet the high-end control and automation requirements of the most sophisticated and complex project situation. Provides secure control for AV system, HVAC, lights, curtain, security, power management, and many similar specialized applications requiring economical control.

Feature

▲ Modular Programming Network Architecture
▲ On-board 256MB RAM and 1GB Flash Memory
▲ Visualized Touch Screen Function
▲ Seamless Integrate into the system architecture,control all the hardware devices
▲ Integrate all the functionality into a single interface
▲ PC, iPad, and Android control app support
▲ Multi-user Operation, authority management
▲ High-speed, real-time seamlessly run multiple programs simultaneously

Technical

Specifications

Item                                                                            Description



Commodity                                                                Central Control Systems



Memory Card                                                            On-board 256MB RAM and 1GB Flash Memory
Power Supply                                                            AC 100-240 V
Warranty                                                                   3 Years
Operating Temperature                                            0-45 ℃
Storage Temperature                                               -10-60 ℃
Relative Humidity                                                     5% to 90% non-condensing

Control                                                                      RS232 / ENTERNET PORT

Rack Mount                                                               Yes



Model

                                                                                   （8）3 pin phoenix Terminal Blocks

COM Ports                                                                 RS-232, 422, 485 Ports
                                                                                   Pin Definition 2=GNF, 3=RX
                                                                                   1200-57600 baud



                                                                                   （8）3 pin phoenix Terminal Blocks
                                                                                    IR Transmit 1 way Serial Port
IR                                                                                Pin Definition 1=negative electrode, 3=positive electrode

                                                                                    Each IR terminal can store 16 sets of NEC codes or 8 sets of other codes

                                                                                    1200-57600 baud



                                                                                   （8）3 pin phoenix Terminal Blocks
                                                                                    8 channel I/O Port for contact closure with each input being capable of voltage sensing,
I/O                                                                               circuit protection and power down memory.
                                                                                    Pin Definition 1= TX, 2= GND, 3=RX
                                                                                    Voltage 0-24V

Panel Drawing

① IR Card 8 Channel IR Port
② IO Card 8 Channel IO Port
③ RS232 Card 8 Channel RS232 Port
④ LAN : Connect to Network
⑤ RS232 IN : Connect to PC
⑥ RS232 Out
⑦ Power

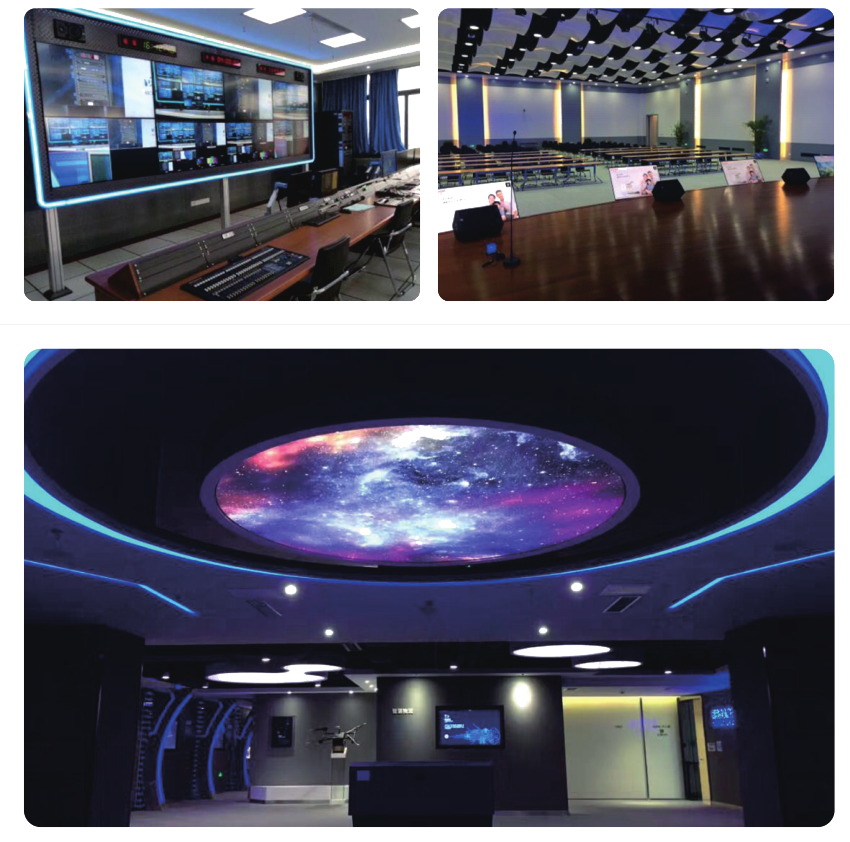

Case Study
